GPS DIN Rail Module 6875

Short Description

Module 6875 is a GPS clock in a compact aluminium housing for 35mm DIN rail mounting (DIN EN 60715 TH35). The module is easily clipped onto the rail via a clip based on "snap-in" mechanism.

Module 6875 provides the below parameterizable signal outputs via the hmc (hopf Management Console):

  • Serial interface COM0: RS232
    • Output of serial string, cyclic pulses, DCF77 pulse (1Hz) or digital IRIG-B signal B00x / IEEE C37.118-2005 (formerly IEEE 1344-1995) / AFNOR NF S87-500 or connection to the hmc (hopf Management Console)
  • Serial interface COM1: RS232 or RS422 (level parameterizable via the hmc)
    • Output of serial string, cyclic pulses, DCF77 pulse (1Hz) or digital IRIG-B signal B00x / IEEE C37.118-2005 (formerly IEEE 1344-1995) / AFNOR NF S87-500
  • 3x optical coupler pulse outputs (potential free)
    • Output of cyclic pulses, DCF77 pulse (1Hz) or status messages
  • 1x TTL output
    • Output of serial string, cyclic pulses, DCF77 pulse (1Hz) or digital IRIG-B signal B00x / IEEE C37.118-2005 (formerly IEEE 1344-1995) / AFNOR NF S87-500
  • 1x analogue output via BNC
    • Output of DCF77 antenna simulation (77.5kHz) or analogue IRIG-B signal B12x / IEEE C37.118-2005 (formerly IEEE 1344-1995) / AFNOR NF S87-500
  • Optionally available with additional:
    • 1x or 2x FO outputs
    • 1x FO output and 1x FO input
      for the output of a serial string, cyclic pulses, DCF77 pulse (1Hz) or digital IRIG-B signal B00x / IEEE C37.118-2005 (formerly IEEE 1344-1995) / AFNOR NF S87-500
  • Version with additional NTP / SINEC H1 LAN Board: Module 6875LAN

Features

  • Different versions for various operating voltages:
    • Version with wide range power supply unit for 18-72V DC (FG6875Gxx)
    • Version with wide range power supply unit for 100-240V AC / 110-250V DC (FG6875ACxx)
  • Parameterization / monitoring via hmc (hopf Management Console)
  • Potential isolation of the GPS antenna circuit
  • Synchronisation with just one satellite possible
  • SyncOFF Timer (bridging of reception failure) providing an error-free operation even under difficult reception conditions
  • Redundant multiple test mechanism of the synchronisation signal providing a correct and leap-free signal evaluation
  • High free running accuracy
  • Maintenance-free back-up clock for three days
  • On-site firmware update via software tool possible
  • Unit completely maintenance-free
  • Options:
    • In addition 1x or 2x FO outputs or rather 1x FO input and 1x FO output
    • Version with additional NTP / SINEC H1 LAN Board: Module 6875LAN
    • Customized hardware and software adjustments possible

Pictures

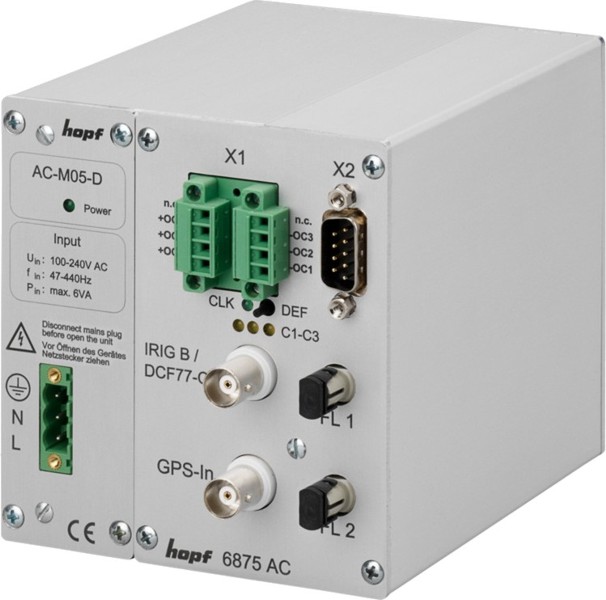

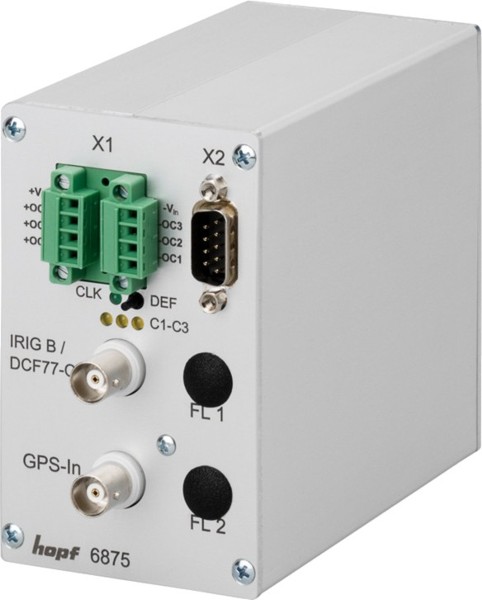

Module 6875 Module 6875AC
