4496 Product Series

Short Description

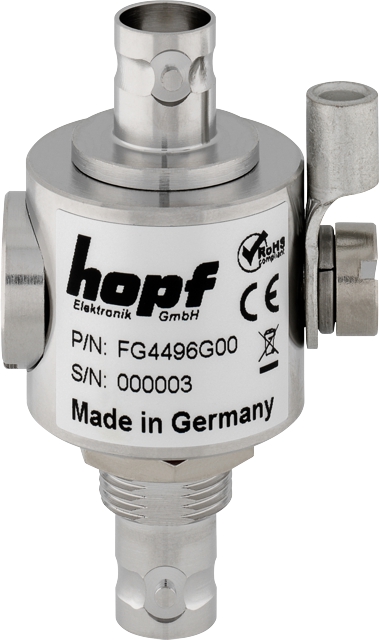

The 4496 product series are coaxial surge protective devices for hopf high frequency antenna systems supporting the Global Navigation Satellite Systems (GNSS) GPS, Galileo, GLONASS, and BeiDou for precise and reliable time synchronization.

The 4496 product series surge protectors are designed to protect hopf GNSS applications supporting the Global Navigation Satellite Systems (GNSS) GPS, Galileo, GLONASS, and BeiDou against lightning and transients. They form the first level of protection for sensitive equipment and can derive multiple times.

The 4496 product series is waterproof and equipped with replaceable gas discharge tubes (GDT).

Key Features

• Small form factor device for looping into the antenna cable
• Low insertion loss
• Removable gas discharge tube (GDT)
• DC-pass
• Bi-directional protection

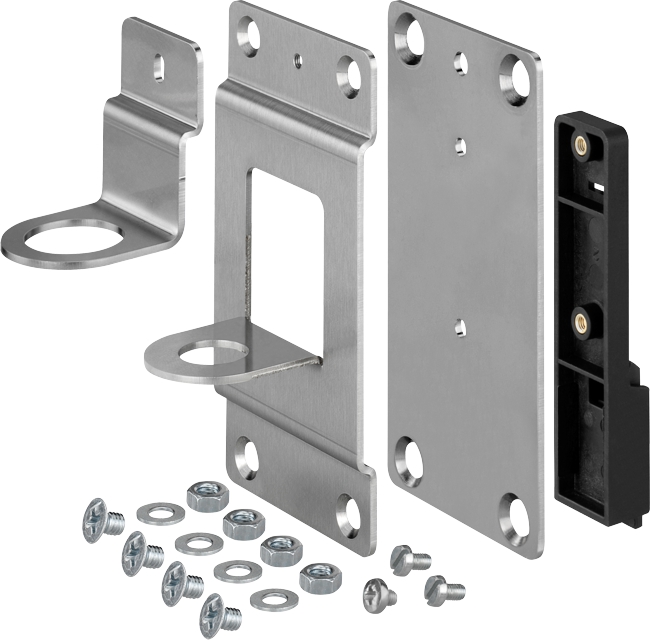

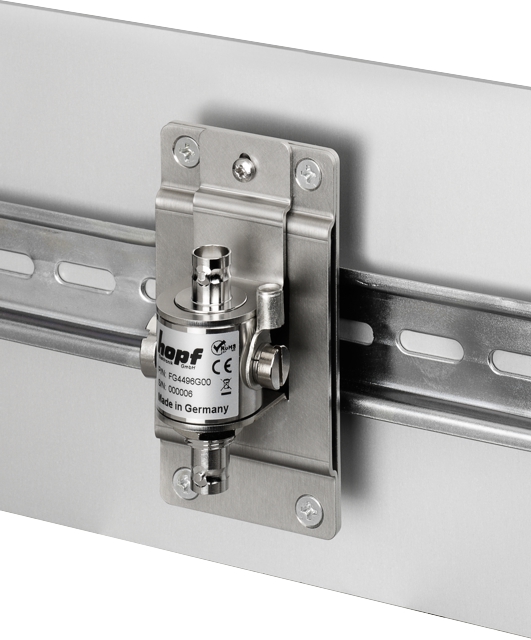

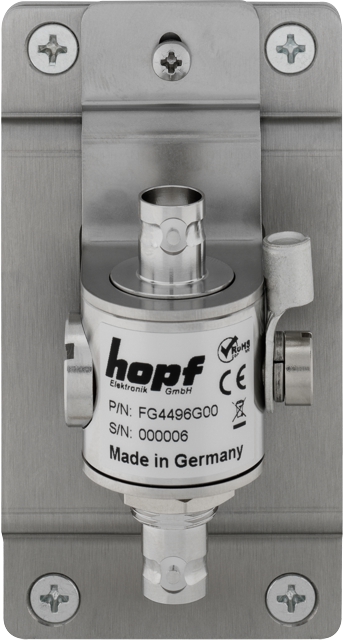

• Mounting kit for wall mounting, mounting plate or mounting on DIN rail according to IEC 60715 TH35

Pictures

Downloads

PDF documents

• Product Sheet 4496G00
• Quick Installation Guide 4496G00
• Declaration of Conformity 4496G00

STEP-Modelle

• FG4496G00 3D-Model
• FG4496M00 3D-Model
