DCF77 Power Splitter 4446, 4-port, active (230V AC)
Short Description
If several DCF77-clocks are wanted in the building the 4x antenna amplifier with potential separation can be used. The device is structured like the antenna amplifier FG444400, but without indirect lightning protection.
The housing contains the mains unit and several amplifier modules.
The signal is fed via a pre-amplifier to 4 potential free output steps and put out via insulated BNC-connectors on the wider side of the housing.
Technical Data
| multi aerial amplifier without indirect lightning protection 4446 | |
|---|---|
| housing type: | aluminium-die-cast-housing |
| dimensions (W x H x D): | 250 x 105 x 95 mm |
| weight: | approx. 3.5 kg |
| earth connection point | |
| thickness of the copper stranded wire: | min. 10 mm² |
| length of the copper stranded wire: | max. 10 m |
| power supply: | 230V AC ± 10% |
| power consumption: | 6 VA max. |
| fuse: | thermal cutout |
| input / output: | BNC connector (female/female) |
| input / output impedance: | 50 Ω |
| cable length antenna – antenna amplifier: | max. 500 m |
| cable length antenna amplifier - clock: | max. 500 m |
| amplification: | 0 to 3 dB |
| temperature range | |
| operation: | -20° C to +80° C |
| storage: | -40° C to +85° C |
| humidity: | 95% non-condensing |
| protection class: | IP40 |

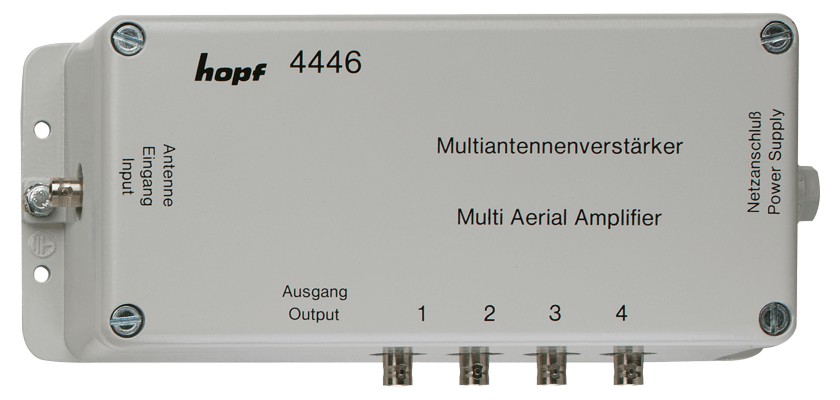

Pictures
